Wednesday, September 3, 2014

Super Convergence Zone Produces Blackouts and Flooding in Puget Sound Country

Convergence zones are generally benign affairs, with a band of clouds and precipitation across central Puget Sound, but Tuesday's convergence zone was a vigorous one with torrential rain, lightning, local flooding, and blackouts for thousands of customers, particularly in Seattle.  In fact, at one point, much of northeast Seattle was blackened out, including my own home.

And its impact was enhanced by it occurrence during the beginning of the fall weather season.

 A scene from Pike Street on Seattle's Capital Hill

Photo Courtesy of Cameron Bruce

A fast moving front/trough moved through the region Tuesday, with the winds turning westerly on the coast; the result was the development of a Puget Sound convergence zone as westerly winds pushed eastward north and south of the Olympics and converged over Puget Sound.

The result was an intense band of precipitation in the convergence as illustrated in this radar image at 6:18 PM Tuesday.  The reds are pouring, heavy rain.

The 6-hr rainfall ending 7:16 PM from Seattle Rainwatch  reached .5-1 inches in places (see total below), but the most damaging aspect was the precipitation intensity as the convergence zone moved buy, with several tenths of an inch falling in minutes. Preliminary data shows Myrtle Edwards Park receiving 0.73” in 30 min and Sand Point getting 0.61”in 30 min.  These are extraordinary rainfall rates for around here.  The street in front of my home (near Sand Point) was a river for 10 minutes.

Although our region get plenty of rain in the winter, it is generally light.   Intense convective rain is often too much for our drainage systems that are generally not configured to take large amounts in short periods.

To illustrate the amazing sharpness of the convergence zone, here is the record at the University of Washington of its passage.  Time is in UTC (GMT), with 0000 UTC being 5 PM.  The 6th panel is precipitation....the trace went straight up by around .2 inches in a few minutes.  You can see the sudden drop in temperature (third panel) and the sudden shift in the wind direction (second panel).

 Amazingly sharp transition.

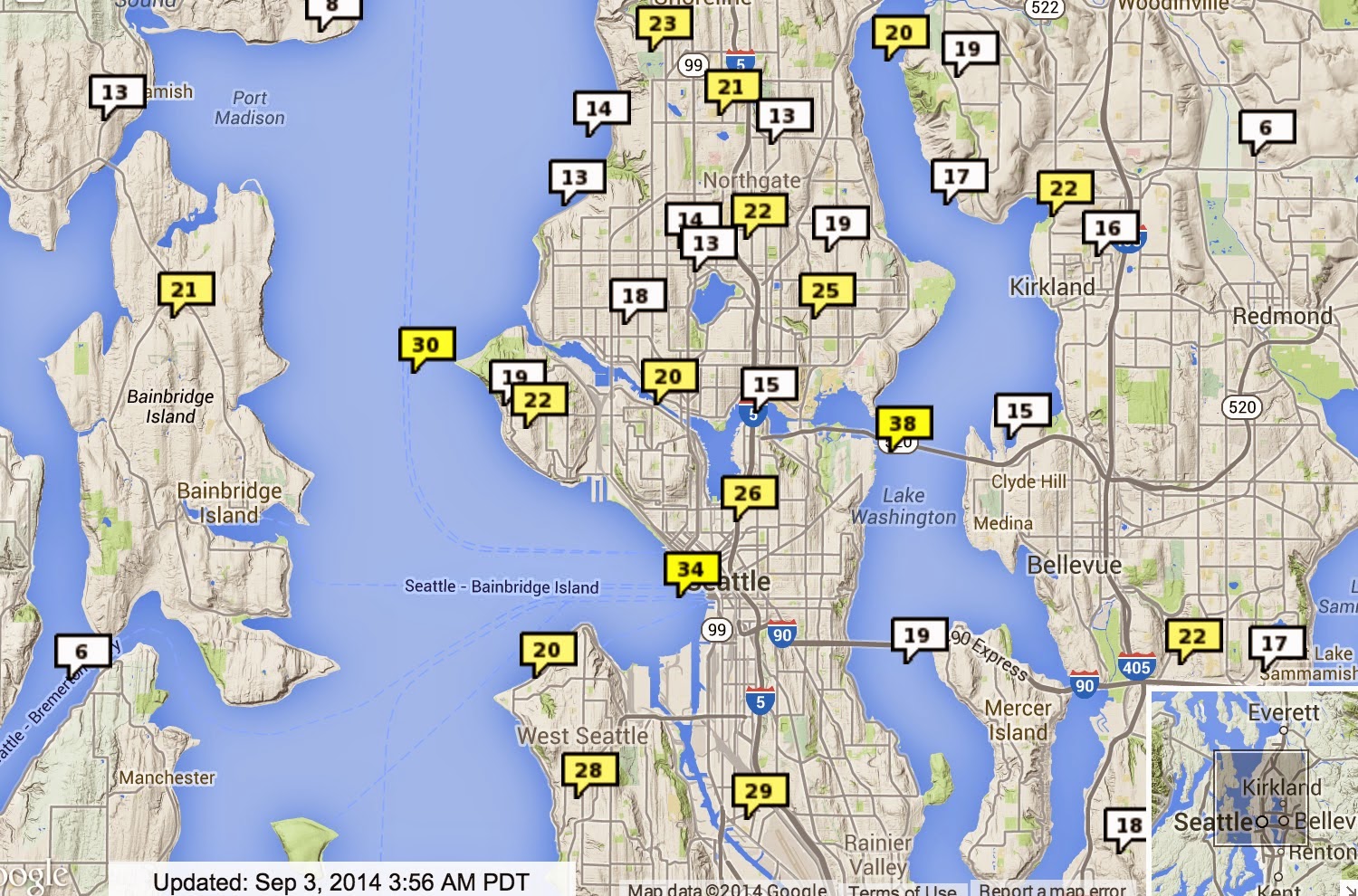

Note that that wind gusted to about 25 knots BEFORE the convergence zone passage.  That is what led to so many power failures.  Here is a map of max winds yesterday around Seattle (mph).  Gusting to the mid-20s over land and into the 30s over the water.

Seems like kind of wimpy winds to cause power failures, right?   We would laugh at such winds during the mid-winter.   But this is the first storm of the season.  Trees have their leaves (which act as sails) and all the new growth since last winter has been untested by wind.   The first event syndrome.

(As an aside you got to really appreciate the power line crews working to restore power in the rain after this kind of event--these folks are heroic, working in the rain and adverse conditions to get the power back on!)

Finally, a convergence zone subtlety for those who appreciate such things.   The strongest winds with convergence zones are often in the southerlies/southwesterlies south of the convergence line.   To show this, here is a wind forecast for 5 PM from the UW WRF model.  The yellows are sustained winds of around 20 kts (not gusts, which would be larger).  If you look closely, you can see the wind barbs that provide the directions.  Solid lines are sea level pressure.   Very good forecast by the way.

So why are winds so strong south of the convergence zone (where the northerly and southerly winds are colliding?).   The answer is in the pressure pattern.  As the winds from off the Pacific (westerly and northwesterly) interact with the Olympics, the result is an area of low pressure (a trough) east of the Olympics.  Think of water sluicing downwards on the downstream side of rock in a river.   You can see the trough in the pressure forecast above.   This pressure pattern creates a pressure difference (or gradient) over the the south Sound that accelerates winds to the north (air speeds up went it goes from high to low pressure).

This forecast drove a very skillful warning to Seattle City Light on their WindWatch application, giving their crews a heads-up to be ready.

If anyone is interested, I will be doing a weather segment on SandBox radio...the Seattle version of Prairie Home Companion.  Will take place at ACT Theater, downtown Seattle, this Monday evening (Sept 8).   To spice it up, Steve Scher will be on the program as well!  For more information: check here.
